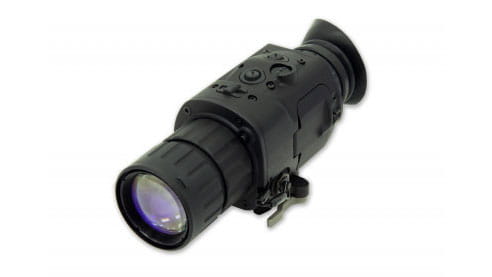

The SPS+MMT next generation hand-held product line is a field-ready Short Wave Infrared (SWIR) viewer enabling high resolution video that provides laser tracking and decoding of up to three independent sources
The SPS+ Multi Mode Tracking System is a compact, battery-powered SWIR imaging device designed for field operations, delivering high-resolution video and effective battlefield pulsed laser detection and decoding in both day and night conditions. It excels in identifying, decoding, colorizing, and overlaying continuous and pulsed battlefield laser aim points with symbology, thereby reducing target engagement time and mitigating risks of fratricide and collateral damage. This capability significantly enhances situational awareness in the battlefield and surrounding areas, supporting rapid target acquisition and intelligence gathering.
The system's small size and lightweight construction allow for easy concealment or stowage, making it suitable for mobile and "on-the-go" operations. It offers several advantages over other intelligence, surveillance, and reconnaissance technologies such as thermal and night vision systems. Unlike traditional imaging technologies, the SPS+MMT maintains performance integrity in the presence of bright lights and flashes. It also excels in imaging through adverse environmental conditions like light haze, smoke, and dust that typically impair other systems.
Key features include a removable memory card for capturing snapshots and videos of SPS+MMT imagery, facilitating enhanced intelligence gathering with on-screen display capabilities. Additionally, the system can be securely mounted on compatible weapons and lasers using the rail mountS, further enhancing its operational versatility and integration capability.
The SPS+MMT provides operators with the following capabilities:
- Simultaneous tracking and decoding of 3 pulsed battlefield lasers day and night
- Laser range finder track/decode
- Covert out-of-band SWIR imaging (0.7 to 1.7 μm)
- Image through haze, dust and smoke
- Enhanced battle damage assessment
- Reduce fratricide and collateral damage
- Save images and video to removable memory card
- Specifications
-
Compact
6.0 x 3.0 x 2.8 inches (L x W x H)
-
Lightweight
< 1.5 lbs. with 50 mm lens, filter and batteries
-
Modular
Interchangeable lens options (accomplished in under three seconds)
-
Enduring
2 hours continuous operation at room temperature with 2 CR123A batteries (user selectable "auto off" power saving function)
-
Sensitive
Low light imaging and optimal detection of NIR pointers, 1.06 μm laser designators and 1.55 μm eye-safe laser rangefinders in day or night
-
Detailed
640 x 500 resolution
-
Rugged
MIL-STD-810G compliant design for temperature, transportability, immersion, sand, altitude, dust, and humidity
-
Versatile
Rail mountable, adjustable reticle, digital zoom, media recording, compatible with other Sensors Unlimited lenses
-
Tracking
Laser tracking and decoding up to 3 pulsed laser sources (rangefinders or laser target designators/markers with NATO PRF codes)
-
See-Spot
User selectable colored highlighting of all pulsed laser sources in field of view. Enables daytime see-spot without filter.
- See battlefield lasers day and night
- Covert out-of-band SWIR imaging (0.7 to 1.7 μm)
- ID, acquire and engage targets faster
- Image through haze, dust and smoke
- Enhanced battle damage assessment
- Reduce fratricide and collateral damage
- Save SWIR images and video to removable memory card
Downloads
Important export information
The International Traffic in Arms Regulations (ITAR) details the regulations governing the export of defense related materials and technologies. The U.S. Munitions List (USML) categorizes goods and technologies governed by the ITAR. This product is available for sale outside the United States to approved end users subject to receipt of an approved export license. Export of this product from the United States is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
Violations of the ITAR are extremely serious and can result in fines, debarment, and criminal sanctions. Please direct any questions or concerns regarding the export status of your Sensors Unlimited product to your Account Manager or email us at sui_info@collins.com.
SPS+MMT | ||
Export Classification: | ITAR XII(a)*(3) |
RTX does not assume any liability that should arise from the provision of this information in connection with national customs laws and regulations or other international trade requirements.
