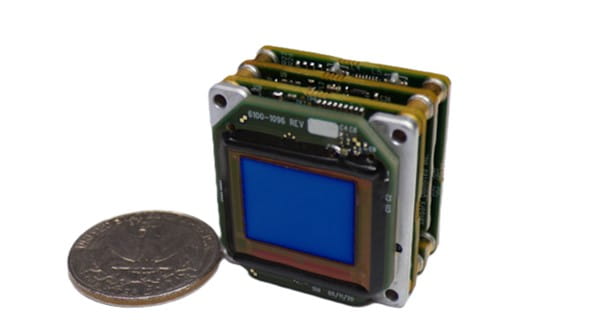

1280JSX+MMT Camera

The 1280JSX+MMT represents the latest in SWIR imaging, combining high-definition 1280 x 1024 resolution with multi-mode (MMT) for laser pulse detection and tracking capabilities in HD. The product is specifically designed for the warfighter with cutting-edge laser tracking and decoding of multiple asynchronous sources, simultaneously for covert applications, supporting day/night operations with enhanced HD image quality and real-time, field-ready performance.

Equipped with a highly sensitive focal plane array (FPA), the camera ensures three-point parameterized non-uniformity corrections PNUC) which significantly enhance image quality and performance across full temperature ranges. Its full field-of-view (FOV) laser pulse detection supports multimode tracking and asynchronous laser pulse detection (ALPD), enabling rapid identification of battlefield targeting lasers, including covert eye-safe wavelengths.

SUI’s patented pixel architecture maximizes signal capture with an unparalleled 99.9% duty cycle, across infinite analog gain states. This innovative method, combined with MMT laser pulse detection circuitry, allows for precise identification of laser aim points on the battlefield, even with slow repetition rates or narrow pulse width lasers.

The camera enhances coordination with air, amphibious, and ground combat units engaged in designating, marking, and transferring targets using coded lasers. It also enables operators to monitor targets and associated laser energy during the deployment of laser-guided munitions.

Now accepting RFQs with a minimum-order-quantity (MOQ) of (10) units. For more information, please contact Sensors Unlimited at sui_contact@collins.com.

• Resolution: 1280 x 1024 pixels with 12µm pixel pitch
• Laser tracking and decoding of multiple asynchronous sources, simultaneously, day and night
• High sensitivity, MIL-rugged design
• Covert out-of-band NIR/SWIR imaging (0.7 to 1.7 µm)
• Full-FOV tracking of PRF/LRF sources with full NATO code resolution
• Image through haze, dust and smoke
• Enhanced battle damage assessment
• Reduce fratricide and collateral damage
• Compact and lightweight
• Snapshot exposure
• No false detections, immune to sun glint
• 100% duty cycle
• Multi-mode: SWIR imaging and ALPD detect/decode
• Daytime see-spot and pulse detection with no spectral filtering
• Non-Uniformity Correction: Three-point parameterized pixel corrections for optimized image quality across temperature changes

• Ground Vehicles (EO systems)
• Hand-Held Targeting/Weapon Sights
• Air Wing (Gimbals and Targeting PODS)
• Seeker Heads
• High Precision Electro-Optical Platforms (PTZ)
• Next Gen Laser Warning with IFF enabled w/ 1550nm
• Laser-guided munitions support, see-spot detection.
• Full FOV tracking for secure perimeter monitoring
