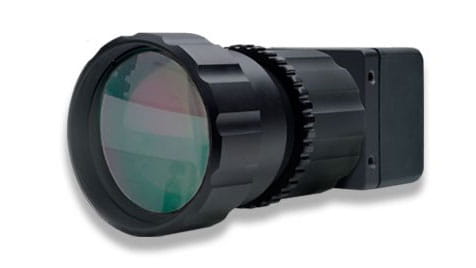

The compact 320CSX represents the next generation of SWIR video cameras, designed specifically for applications that require small size, weight, and power (SWaP).
The Sensors Unlimited Micro-SWIR 320CSX camera features a 320 x 256-pixel, high-sensitivity InGaAs imager that is stabilized for consistent performance. It utilizes advanced image enhancement algorithms from Sensors Unlimited to achieve exceptional performance in all lighting conditions.
Capable of operating in bright daylight or low-light conditions, the camera excels in capturing real-time imagery in the short-wave infrared (SWIR) spectrum. It includes onboard automatic gain control (AGC) to maintain optimal image quality regardless of environmental variables. The Camera Link® digital output enables seamless integration, providing 12-bit images for digital processing or transmission.
Compact, lightweight, and power-efficient, this innovative Micro-SWIR camera has transformed industrial process monitoring and imaging applications worldwide.
- 320 x 256 pixel format, 12.5 μm pitch
- Low cost
- 30 Hz full frame rate
- 1.7 W power consumption (@ 20° C)
- High sensitivity 0.9 to 1.7 μm spectrum response imager
- Low light to day time imaging
- Compact size
- All solid-state InGaAs imager
- Snapshot exposure
- On-board, real time non-uniformity corrections
- Digital 12-bit base Camera Link® output
- Automatic Gain Control (AGC)
- C-mount base optic format; adapters available
- Available mounting accessories
- Mechanical
-
Dimensions
ENC Series: 1.25 x 1.25 x 1.20 in, 31.8 x 31.8 x 30.6 mm
OEM Series: 1.25 x 1.20 x 1.19 in, 31.8 x 30.6 x 30.2 mmincludes connectors, excludes lens mm
-
Weight
<60 grams enclosed, <55 grams OEM
-
Lens Mount
C-Mount
-
Camera Link Connector
26 Pin SDR standard connector
-
Power Input Connector
14 Pin SDR standard connector
-
Pixel Pitch
12.5 μm
-
Focal Plane Array
320 x 256 pixels
-
Active Area
4.0 mm x 3.2 mm (5.1 mm diagonal)
- Environmental & Power
-
Operating Case Temperature
-5˚C to 60˚C
-
Storage Temperature
-54°C to 85°C
-
Humidity
95% RH non-condensing
-
Power Requirements
DC Voltage: +4-16 V
Power: 1.7 W at 20°C case temperature, max <4 W -
Functional Shock, Random Vibration, Thermal Shock
MIL-STD-810G compliant design
- Electrical
-
Optical Fill Factor
100%
-
Spectral Response
Standard, 0.9 µm to 1.7 µm
-
Quantum Efficiency
Standard, > 65 % from 1 µm to 1.6 µm
-
Mean Detectivity, D*
2.86 x 1013 cm√Hz/W (typical)
-
Noise Equivalent Irradience*
8.48 x 108 photons/cm2/s (typical)
-
Noise (RMS)*
35 electrons (typical)
-
Dynamic Range*
> 2500:1 at low gain, > 800:1 at high gain - 30 fps
> 2500:1 at low gain, > 1100:1 at high gain - 60 fps -
Operability**
> 99%
-
Exposure Times
200 µs to 32 ms
-
Image Correction
2-point (offset and gain) pixel by pixel, user selectable
-
Digital Output Format
12 bit base Camera Link®
-
Digital Output Framerate
30 fps
-
Scan Mode
Continuous
-
* λ = 1.55 µm, exposure time = 32 ms, case temperature = 20°C, highest sensitivity gain setting, no lens, x1 digital gain with enhancement, AGC, and correction off
** The fraction of pixels with responsivity deviation between +/- 35% from the mean.
Commercial Applications
- Industrial processing monitoring
- Solar cell inspection
- Driver vision enhancement
- Security
- Inspection sorting
- Telecommunications
- Thermal measurements
- Spectroscopy
- Medical imaging
- Infrared reflectography
- Imaging through silicon
Dual-use Applications
- Low-light level imaging
- Covert surveillance with 24 hr/7 day operation
- lmaging through atmospheric obscurants
Frame rate calculator
Instructions: adjust the number of rows to determine the maximum frame rate for a given window. Frame rate does not change with number of columns on this camera. However, the number of columns can be reduced for other reasons.
Max frame rates are estimated, actual results may vary.
This calculator does not contain any export controlled technical data.
Contact us to discuss your windowing needs.
