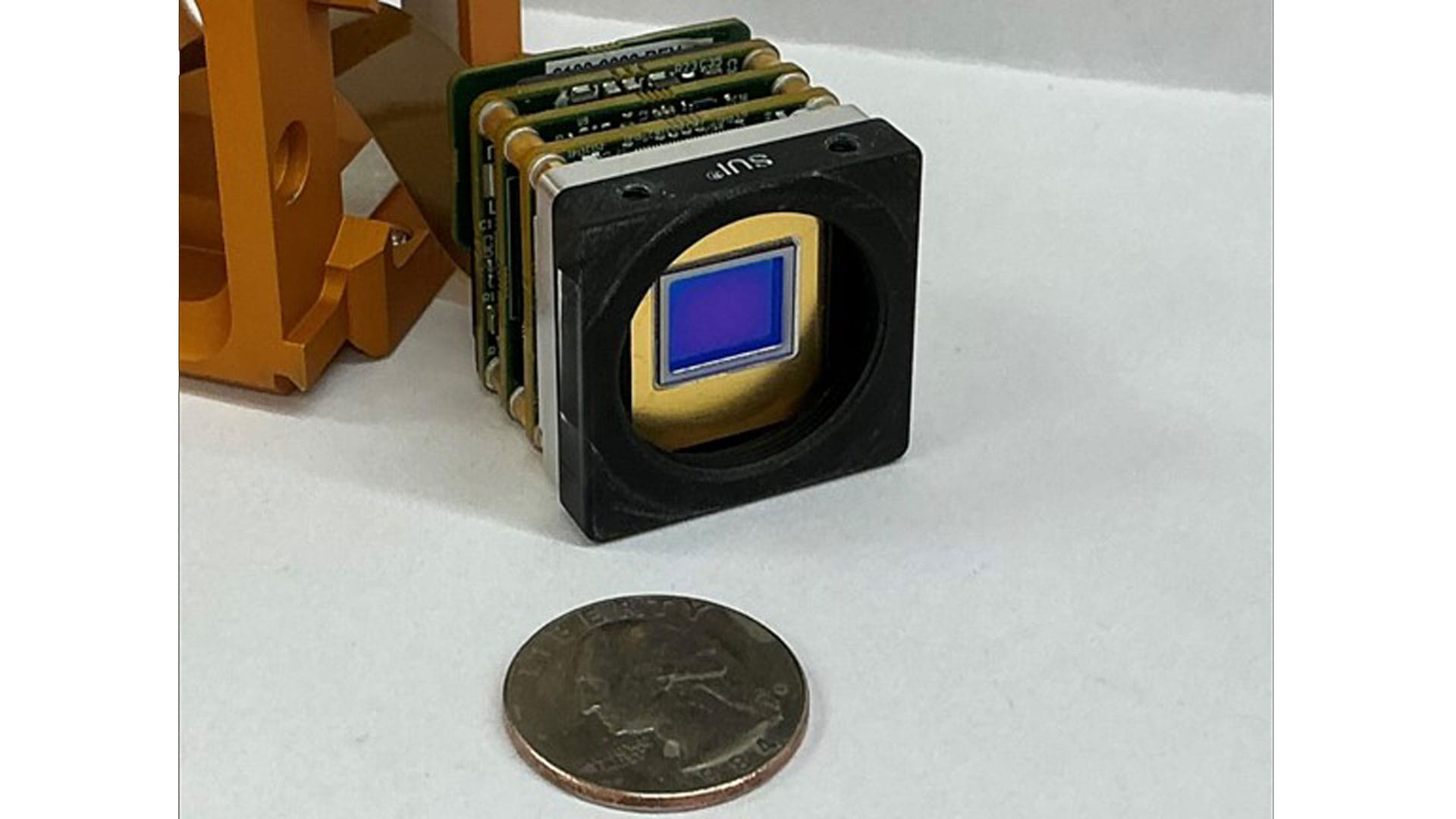

eSWIR 640CSX+MMT

The eSWIR 640CSX+MMT represents the latest in eSWIR 2D imaging – up to 2.2 µm spectral response with multi-mode tracking (MMT) for asynchronous laser pulse detection and decoding of multiple asynchronous sources, simultaneously. It’s designed for covert applications, supporting day/night operations with enhanced image quality and real-time, field-ready performance.

Equipped with a highly sensitive focal plane array (FPA), the camera ensures three-point parameterized non-uniformity corrections (PNUC) which significantly enhance image quality and performance across full temperature ranges.

Its full field-of-view (FOV) laser pulse detection supports multimode tracking and asynchronous laser pulse detection (ALPD), enabling rapid identification of battlefield targeting lasers, including covert eye-safe wavelengths.

SUI’s patented pixel architecture maximizes signal capture with an unparalleled 99.9% duty cycle, across infinite analog gain states. This innovative method, combined with MMT laser pulse detection circuitry, allows for precise identification of laser aim points on the battlefield, even with slow repetition rates or narrow pulse width lasers.

The camera enhances coordination with air, amphibious, and ground combat units engaged in designating, marking, and transferring targets using coded lasers. It also enables operators to monitor targets and associated laser energy during the deployment of laser-guided munitions.

Custom capabilities allow customers to collaborate with SUI to create targeted solutions for their specific eSWIR 2D FPA requirements.

Now accepting RFQs with a minimum-order-quantity (MOQ) of (10) units. For more information, please contact Sensors Unlimited at sui_contact@collins.com

• Extended Wavelength 2D Focal Plane Array with ALPD to 2.2 µm
• Resolution: 640X512 pixels with15µm pixel pitch
• Laser tracking and decoding of multiple asynchronous sources, simultaneously, day and night
• High sensitivity, MIL-rugged design
• Extended covert out-of-band SWIR imaging up to 2.2 µm
• Full-FOV tracking of PRF/LRF sources with full NATO code resolution
• Image through haze, dust and smoke
• Enhanced battle damage assessment
• Reduce fratricide and collateral damage
• Compact and lightweight
• Snapshot exposure
• No false detections, immune to sun glint
• 100% duty cycle
• Multi-mode: SWIR imaging and ALPD detect/decode
• Daytime see-spot and pulse detection with no spectral filtering
• Non-Uniformity Correction: Three-point parameterized pixel corrections for optimized image quality across temperature changes

• Ground Vehicles (EO systems)
• Hand-Held Targeting/Weapon Sights
• Air Wing (Gimbals and Targeting PODS)
• Seeker Heads
• High Precision Electro-Optical Platforms (PTZ)
• Next Gen Laser Warning with IFF up to 2.2nm
• Laser-guided munitions support, see-spot detection
• Full FOV tracking for secure perimeter monitoring
