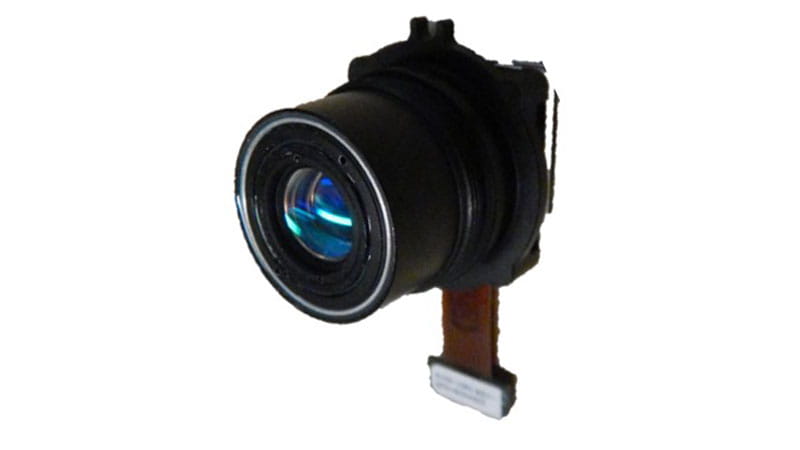

The ultra compact 640CSXCC+MMT Camera is a Short-Wave Infrared (SWIR) camera designed for passive imaging and asynchronous laser pulse detection (ALPD) of up to three laser spots simultaneously. It features a 640x512 resolution with 15um pixels, making it ideal for MIPI CSI-2 for integration into Advanced Driver Assistance Systems (ADAS) and NVIDIA Jetson AI platforms. The camera's interface allows for future integration into various systems.
Leveraging our patented GMOD pixel architecture, the 640CSXCC+MMT delivers enhanced performance in both low-light and daylight conditions. Its full field-of-view (FOV) laser pulse detection supports multimode tracking and ALPD, enabling rapid identification of battlefield targeting lasers, including covert eye-safe wavelengths.
The camera is equipped with a highly sensitive focal plane array (FPA) that ensures three-point parametrized nonuniformity corrections (PNUC), significantly enhancing image quality and performance across a wide range of temperatures.
Now accepting RFQs with a minimum order quantity (MOQ) of (10) units. For more information, please contact Sensors Unlimited at sui_contact@collins.com
- Low light level imaging
- Integrated optics
- Multi-mode: SWIR imaging and ALPD detect/decode
- Compact and lightweight <30 grams
- 60 frames per second full frame rate
- 640x512 -pixel format, 15.0μm pitch
- High sensitivity in 0.9 to 1.7 μm spectrum; NIR/SWIR from 0.5 to 1.7 μm and VIS/SWIR from 0.4 -1.7μm
- Tested to MIL-STD-810G for functional shock, vibration, thermal shock, storage temperature, altitude and humidity
- Operation from -40 to +70°C
- Non-uniformity correction: three-point parameterized pixel corrections for optimized image quality across temperature changes.
Coming soon
Applications
- Low-light level imaging
- Helmet-mounted soldier systems
- Covert surveillance with 24/7 operation
- Multi-laser spotting and tracking
- Ideal for MIPI CSI-2 outputs for integration to ADAS systems & NVIDIA Jetson AI platforms
- Imaging through atmospheric obscurants.
- Easy integration into helmet mounted soldier systems, small gimbals, unmanned aircraft systems, handheld and robotic systems.
Downloads
Important export information
The International Traffic in Arms Regulations (ITAR) details the regulations governing the export of defense related materials and technologies. The U.S. Munitions List (USML) categorizes goods and technologies governed by the ITAR. This product is available for sale outside the United States to approved end users subject to receipt of an approved export license. Export of this product from the United States is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
Violations of the ITAR are extremely serious and can result in fines, debarment, and criminal sanctions. Please direct any questions or concerns regarding the export status of your Sensors Unlimited product to your Account Manager or email us at sui_info@collins.com.
