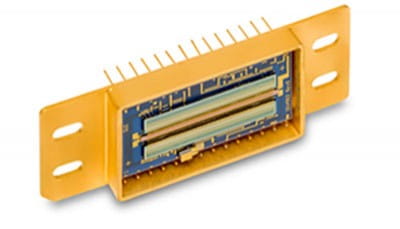

Available in machine vision (MV) and spectroscopy formats, the high-resolution LE/LSE series linear InGaAs photodiode arrays are setting the standard for high performance
Details
Features
Specifications
Applications
Sensors UnlimIted’s LE/LSE InGaAs arrays feature 512 and 1024 elements, in 25µm or 50µm pixel pitches with pixel heights of 250µm and 500µm. These arrays cover a standard wavelength range of 0.8 to 1.7 μm or an extended range of 1.1 to 2.2 μm.
Anti-blooming protection prevents charge flow from saturated pixels, allowing for increased intra-scenic dynamic range. These channels are >99% operable and have unmatched uniformity. The photodetector arrays are hybridized with CMOS readout integrated circuits (ROIC) of SUI’s exclusive design to offer maximum noise immunity and sensitivity.
Anti-blooming protection prevents charge flow from saturated pixels, allowing for increased intra-scenic dynamic range. These channels are >99% operable and have unmatched uniformity. The photodetector arrays are hybridized with CMOS readout integrated circuits (ROIC) of SUI’s exclusive design to offer maximum noise immunity and sensitivity.
Operating circuit designs need only provide for one analog supply and two digital control lines for optimum ROIC performance. Two separate gains are selectable with a single input. Arrays are available with 1 or 2 stage thermoelectric coolers for temperature stabilization and monitoring.
Applications include industrial process control and inspection in agricultural sorting, biomedical analysis, thermal imaging and NIR Molecular Spectroscopy.
- Easy to use analog design
- Wavelength ranges of 0.8 to 2.2 μm
- Pixel heights of 250 μm or 500 μm
- 25 µm or 50 µm pitch – One inch array
- Two separate gains are selectable with a single input
- Max lps 1.25KHz - Analog Output
- Antiblooming to prevent charge overflow from saturated pixels
- Available with 1 or 2 stage thermoelectric cooler, or without a cooler for uncooled or externally-cooled operation.
- ESD Resistant
- Product Sales Sheet
Commercial applications
- FTIR / NIR interferometry
- NIR Molecular Spectroscopy
- Biomedical Analysis
- Plastic Recycling
- Industrial Process Control and Inspection
- Machine Vision
Important export information
These commodities, technology and/or software are subject to the Export Administration Act as promulgated by the Export Administration Regulations. Diversion contrary to U.S. law is prohibited.
| LE (Tall Pixel) Series | |
| Export Classification: | EAR99 |
| LE (Square Pixel) Series | |
| Export Classification: | 6A002.a.3.d.2.a. |
RTX does not assume any liability that should arise from the provision of this information in connection with national customs laws and regulations or other international trade requirements.
