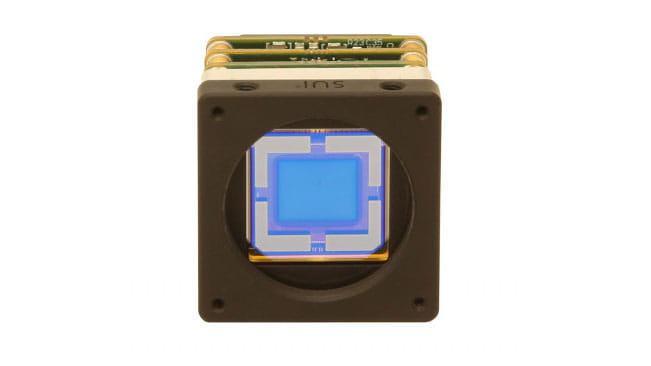

The Sensors Unlimited Micro-SWIR™ 640CSX+MMT SWIR camera core with high-resolution video for laser tracking and decoding of multiple asynchronous sources simultaneously.
Details
Benefits
Specifications
Applications
The 640CSX+MMT camera is the most advanced SWIR sensor to date, specifically designed for the warfighter with cutting-edge laser tracking and decoding of multiple asynchronous sources, simultaneously.
Equipped with a highly sensitive focal plane array (FPA), the camera ensures three-point parametrized nonuniformity corrections PNUC) which significantly enhance image quality and performance across full temperature ranges.
Its full field-of-view (FOV) laser pulse detection supports multimode tracking and asynchronous laser pulse detection (ALPD), enabling rapid identification of battlefield targeting lasers, including covert eye-safe wavelengths.
SUI’s patented pixel architecture maximizes signal capture with an unparalleled 99.9% duty cycle, across infinite analog gain states. This innovative method, combined with MMT laser pulse detection circuitry, allows for precise identification of laser aim points on the battlefield, even with slow repetition rates or narrow pulse width lasers.
The camera enhances coordination with air, amphibious, and ground combat units engaged in designating, marking, and transferring targets using coded lasers. It also enables operators to monitor targets and associated laser energy during the deployment of laser-guided munitions.
- Laser tracking and decoding of multiple asynchronous sources, simultaneously, day and night
- High sensitivity, MIL-rugged design
- Covert out-of-band NIR/SWIR imaging (0.7 to 1.7 µm)
- Full-FOV tracking of PRF/LRF sources with full NATO code resolution
- Image through haze, dust and smoke
- Enhanced battle damage assessment
- Reduce fratricide and collateral damage
- Compact and lightweight
- Snapshot exposure
- No false detections, immune to sun glint
- 100% duty cycle
- Multi-mode: SWIR imaging and ALPD detect/decode
- Daytime see-spot and pulse detection with no spectral filtering
- Mechanical
-
Dimensions
1.252” W x 1.252” H x 1.35” D ; 31.8 W x 31.8 H x 34.3 D mm
(excluding connectors and lens)
-
Weight
≤60 g
-
Lens Mount
C-mount standard
-
Camera Link Connector
Digital output ST4 board-to-board connector
-
Pixel Pitch
15 µm
-
Focal Plane Array Format
640 x 512 pixels
-
Active Area
9.6 mm x 7.68 mm (12.29 mm diagonal)
- Environmental & Power
-
Operating Case Temperature
-40° C to 70° C
-
Storage Temperature
-54° C to 85° C
-
Humidity
95% RH non-condensing
-
Power Requirements
DC voltage: +4.5-6V
Power: Typical power <3 W, Maximum power ≤6.5 W
-
Functional Shock, Random Vibration, Thermal Shock
MIL-STD-810G compliant design
- Electrical
-
Optical Fill Factor
100%
-
Spectral Response
NIR/SWIR, 0.7 µm to 1.7 µm
-
Quantum Efficiency
NIR/SWIR, ≥65% from 1.0 µm to 1.7 µm
-
Digital Output Frame Rate
30 fps / 60 fps Imaging; contact factory for ALPD rates
-
ALPD FAR %
Contact Factory for Detail
-
Image Correction
Three point parameterized non-uniformity corrections (PNUC), pixel by pixel, user selectable
-
Scan Mode
Continuous
-
Digital Output Format
12-bit base camera Link
- Pulse Detection
-
Pulse detection dead time
None
- Ground Vehicles (EO systems)
- Hand-Held Targeting/Weapon Sights
- Air Wing (Gimbals and Targeting PODS)
- Seeker Heads
- High Precision Electro-Optical Platforms (PTZ)
- Next Gen Laser Warning with IFF enabled w/ 1550nm
Important export information
The International Traffic in Arms Regulations (ITAR) details the regulations governing the export of defense related materials and technologies. The U.S. Munitions List (USML) categorizes goods and technologies governed by the ITAR. This product is available for sale outside the United States to approved end users subject to receipt of an approved export license. Export of this product from the United States is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
Violations of the ITAR are extremely serious and can result in fines, debarment, and criminal sanctions. Please direct any questions or concerns regarding the export status of your Sensors Unlimited product to your Account Manager or email us at sui_info@collins.com.
| Micro–SWIR 640CSX MMT Multi-Mode Tracking | |
| Export Classification: | ITAR XII(e)(4) |
RTX does not assume any liability that should arise from the provision of this information in connection with national customs laws and regulations or other international trade requirements.
