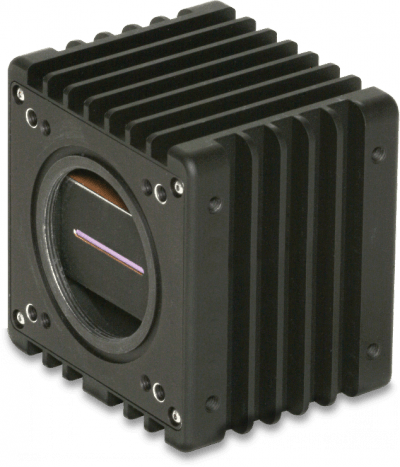

The SUI 1024-LDH2 is a second-generation, high-speed 1024-pixel linescan InGaAs camera that increases the A-line rate to 91,911 lines per second (lps).
The high-speed SUI 1024-LDH2 InGaAs camera enables spectral-domain optical coherence tomography (SD-OCT) at 1.04 μm wavelength, allowing rapid capture of detailed 3-D volumes of the retina, nerve head and choroid layer. For 1.31 μm wavelength SD-OCT, the camera supports diode-array based systems, ensuring superior phase stability for Doppler or polarization-sensitive OCT (PS-OCT) applications.
The camera features 12-bit digital capture via base-format Camera Link® interface cards, offering a maximum dynamic range exceeding 2300:1 at high line rates. Two pixels are available: 500-μm tall pixels for alignment in SD-OCT setups and 25-μm square pixels for ultra-fast machine vision (MV) or dual-camera PS-OCT configurations.
This versatility makes the LDH2 suitable for a range of high-resolution imaging tasks in medical diagnostics and industrial applications.
- 91,911 lps for 1024 pixels at 12 bits
- Integrate-while-read snapshot acquisition
- Wavelength response over 0.8 μm to 1.7 μm with flat QE for 1.05 and 1.31 μm OCT
- 25 μm pixel pitch with aperture heights of 25 μm (defined by on-chip mask) or 500 μm
- 12-bit base Camera Link® compatible output and control
- High quantum efficiency and dynamic range
- Operating temperature range of -10 to +50°C
- Mounts easily to spectrometers due to 5.7 mm image plane depth and O-ring light seal
- Mounts easily to optics benches or MV systems with tripod, front or side fastener hole patterns
- Optional adapters for F-mount or C-mount, lenses (C-mount lenses may not fully illuminate the full width of the 25.6 mm wide arrays)
- Mechanical
-
Dimensions
6.1 cm x 7.37 cm x 7.62 cm
2.4 in x 2.9 in x 3.00 in
Length excludes I/O connectors, and lens adapter -
Weight
< 450 g or 1 lbs (no lens or adapter)
-
Lens Mount
M42x1-6H with 5.7 mm to image plane (std)
Fixed distance C-Mount adapter (opt)
Adjustable distance F-Mount adapter (opt) -
Spectrometer Mount
4 tapped 8-32 holes in 2 inch square pattern
4 tapped M4x0.7-6H holes spaced 5 cm x 4 cm (h x w)
O-Ring light seal, 1.9 inch diameter, 1/16th thickness -
Camera Tripod Mount
2 tapped ¼-20 holes alternating on ¾” (19 .05 mm)
spacing with 2 tapped M6-6H holes -
Side Wall Mounts
4 tapped M4x0.7-6H holes, 5 x 4.5 cm spacing (h x d)
- Environmental & Power
-
Operating Case Temperature
-10 to +50°C
-
Storage Temperature
-20°C to 70°C
-
Humidity
Non-condensing
-
Power Requirements
AC Adapter: 100-240 VAC, 47-63 Hz, < 1.0 A
DC voltage/power 7-16 V, < 6 W at 25°C, <9 W at 50°C
In-rush current< 1.5 A peak - Interfaces
-
Control
SDR 26-pin connector (Base Camera Link®)
-
Image Data
SDR 26-pin connector (Base Camera Link®)
-
Power
Hirose HR10-7R-6PA receptacle
Mates with HR10-7P-6S or SN4-8-6 (P) -
Sync Output
SMA: 5 V, 50 Ω series terminated, active high: integration active
-
Trigger: Input
SMA, Low < 0.5, 3 V > high < 5 V
-
Status LED
Green: TEC locked at setpoint
Red: TEC unlocked
Blinking: Timing or triggering error - Regulatory Compliance
-
CE
Meets class A level for emission, immunity & ESD standards
-
FCC
Meets requirements for Part 15, Subpart B, Class A, 2006
- Electro-Optical Performance
-
Sensor Format 1
1024 pixels on 25 μm pitch with 8 readout ADCs
-
Optical Aperture (pixel height) 1
500 μm or 25 μm (square pixel sharply defined by mask on detector surface)
-
Peak Quantum Efficiency 1
> 70%
-
Gain Capacitor Setting
0.1 pF 1.0 pF 10.0 pF Typical Specification Typical Specification Typical Specification Net full well capacity (Me-) 2 2 >1.4 8.7 >7.7 85 >70 Gain (e-/cnt) 1,3 540 <620 2200 <2450 21400 <24500 Temporal noise (rms counts) 1,2 2 <2.4 1.6 <1.8 1.3 <1.4 Dynamic range 1,2,4 1900:1 >1350:1 2600:1 >2100:1 3100:1 >2600:1 Differential non-linearity 1,2 +/- 0.8% < +/- 1.2% +/- 0.8% < +/- 1.2% +/- 0.8% < +/- 1.5% -
Bad Pixel Specification
White, dark, noisy or pixels exceeding +/- 10 of the mean value when illuminated at 50% of full well
Number of bad pixels limited to a maximum of 1% of array total; no bad neighbors within 5 pixels -
Exposure Time 1,3
.007 ms to 1 ms in preset modes or to > 1 s with user programmed or via the width of the ext. trigger
-
Trigger Modes 3
Free run, single line per trigger , variable exposure , or gated burst
-
Sync Output
SMA connector: digital signal, high during integration
-
External Trigger 3
Three modes via CC1 or SMA
-
External Variable ET
User set by the duration of trigger input signal (minimum ET pulse: 10 μs)
-
External Trigger Jitter
+/-1 clock cycle: nominally 80 ns with internal ET
-
Pixel Rate
100 Mpix/s max with 2 x 12-bit words transferred on each Camera Link strobe clock at 50 MHz
-
Digital Output Format
12-bit base Camera Link®; recommend NI PCIe-1427 or equivalent frame grabber
-
Readout Mode
Integrate while read, differential double sampling
-
Corrections (preset OPRs)
Factory calibrated gain, offset, and bad pixel replace, applicable to the center 90% of the array
-
Resolution
1024 x 1
-
Pixel Pitch
25 μm
-
Line Rate
91,911 lps
-
Spectral Response
0.8 to 1.7 μm
-
1Actual formats and performance governed by user-selected SUI linear array purchased with camera (dark current may limit longest usable ET)
2Camera readout noise limited for low and medium gain settings; dark shot noise limited for high gain settings
3User selectable by command over Camera Link® serial lines
4Dynamic range limited to maximum values listed when camera operated at exposure times shorter than 28 μs due to reduced full well capacity - Ordering Information
-
Camera Model1 Part number Max. Line rate1 Pitch Pixels FPA length Aperture (height) SU1024-LDH2-1.7RT-0500/LC 8000-0480 91,911 lps 25 μm 1024 25.6 mm 500 μm SU1024-LDH2-1.7RT-0025/LC 8000-0484 91,911 lps 25 μm 1024 25.6 mm 25 μm -
1Cameras include the photodiode array, whose characteristics dominate camera performance; see the array datasheet for more information
2Accessory Kits: Include power supply, carrying case, SMA-BNC trigger in and sync out cables, o-ring, carrying case, mini-CD with manual and free SUI Image. Analysis software for National Instruments Camera Link frame grabbers.
3Part Numbers: Kit with F-mount adapter: 8000-0528. Kit with C-mount: 8000-0530. Kit without lens adapter: 8000-0529
- Spectral-Domain Optical Coherence Tomography (OCT)
- Ultra-fast absorption or emission spectroscopy for combustion research, moisture, lipids, proteins or other molecular vibration bands in the 0.8 to 1.7 μm range
- Machine vision for ultra-high speed inspection, materials classification, sorting and/ or monitoring of continuous processes, for example for food or agricultural product sorting
