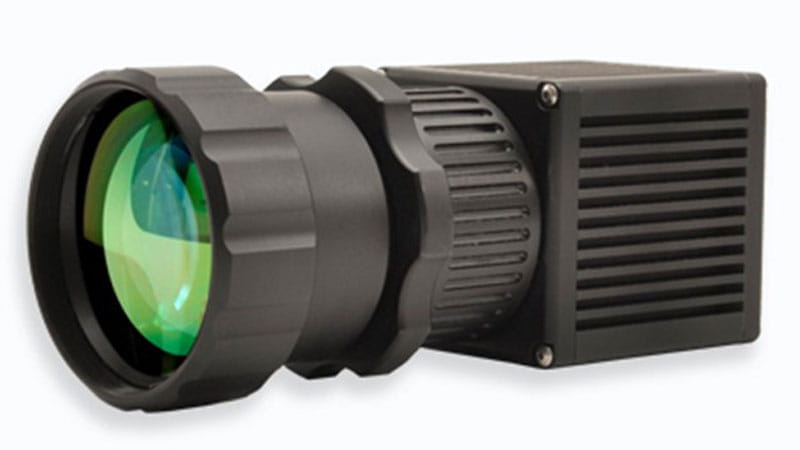

The Sensors Unlimited 640HSX2 second-generation 25.0 µm digital video camera provides an ultrafast frame rate combined with the highest sensitivity for low-light level imaging.
Coming soon
The compact next generation 640HSX2 is a compact Mil-Rugged InGaAs digital video camera designed for high sensitivity and a wide operating temperature range. It delivers real-time imaging from daylight to low-light conditions in the Short-Wave Infrared (SWIR) spectrum, making it ideal for persistent surveillance, laser detection, and penetrating through dust and smoke.
The camera incorporates on-board Automatic Gain Control (AGC), proprietary dynamic-range enhancement technology, and built-in non-uniformity corrections (NUCs) to effectively handle urban night imaging without blooming. It offers a Camera Link® digital output for high-quality 12-bit image transmission and processing. Its lightweight, compact design and low power consumption facilitate easy integration into surveillance systems, whether handheld, mobile, or aerial. Additionally, optional NIR/SWIR technology extends the sensitivity of Sensors Unlimited cameras to below 0.7 μm, providing the benefits of both Near Infrared (NIR) and Short-Wave Infrared wavelength responses.
Estimated availability: Q4 2025 with a minimum order quantity (MOQ) of (10) units. For more information, please contact Sensors Unlimited at sui_contact@collins.com
- Highest sensitivity available in SWIR 0.9 to 1.7 μm or NIR/SWIR 0.7 to 1.7μm
- Ultra-fast frame rate camera
- Superior Low-light level imaging
- Images from partial starlight to direct sun illumination
- 640 x 512-pixel format, 25 μm pitch
- Compact module sizes
- Low power < 3.6 W at 40°C
- On-board non-uniformity corrections
- Advanced Automatic Gain Control (AGC)
- Selectable contrast enhancement modes
- Free-form or user defined Region of Interest (ROI) windowing mode
- Tested to MIL-STD-810G for functional shock, vibration, thermal shock, storage temperature, altitude, and humidity
- Operation from -40°C to 70°C
- Low-light level imaging
- Covert surveillance with passive 24 hr./7-day operation
- Driver Vision Enhancement (DVE)
- Imaging through atmospheric obscurants
- OEM version for easy integration into Unmanned Aerial Systems, handheld, or robotic systems
- Laser spotting and tracking
- EVS applications
Important export information
The International Traffic in Arms Regulations (ITAR) details the regulations governing the export of defense related materials and technologies. The U.S. Munitions List (USML) categorizes goods and technologies governed by the ITAR. This product is available for sale outside the United States to approved end users subject to receipt of an approved export license. Export of this product from the United States is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
Violations of the ITAR are extremely serious and can result in fines, debarment, and criminal sanctions. Please direct any questions or concerns regarding the export status of your Sensors Unlimited product to your Account Manager or email us at sui_info@collins.com.
640HSX2 | |
Export Classification: | Coming soon |
RTX does not assume any liability that should arise from the provision of this information in connection with national customs laws and regulations or other international trade requirements.
