The compact J-Series is Sensors Unlimited’s next generation SWIR digital video camera featuring a 1.3MP high-resolution, high-sensitivity InGaAs imager.

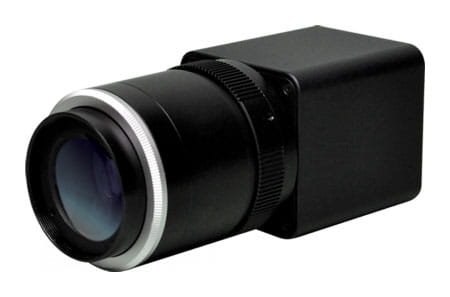

The Mini-SWIR™ JSX Snapshot Camera (GA1280JSX) provides real-time daylight to low-light imaging in the Short Wave Infrared (SWIR) wavelength spectrum for persistent surveillance, laser detection, and penetration through fog, dust, and smoke. In addition, the camera employs on-board Automatic Gain Control (AGC) and built-in non-uniformity corrections (NUCs), allowing it to address the challenges of high-dynamic-range urban night imaging without blooming. Camera Link® digital output provides for plug-and-play video with 12-bit images for digital image processing or transmission. The light-weight and compact size enables easy integration into aerial, mobile and hand-held surveillance systems. Optional VIS/SWIR technology is available to extend the sensitivity of Sensors Unlimited cameras down to 0.5 μm, offering the advantage of both Visible (VIS) and SWIR wavelength response.
- 30 frames per second full frame rate
- 1280 x 1024 pixel format, 12.5 μm pitch
- Capability for 100% duty cycle across entire illumination intensity range
- High sensitivity in 0.9 to 1.7 μm spectrum; VIS from 0.5 to 1.7 μm (option)
- Low power, < 3.0 W at 20°C
- Partial moonlight to day time imaging
- Compact OEM module size, < 4.5 in3
- All solid-state InGaAs imager with snapshot exposure capability
- On-board, real time non-uniformity corrections
- Digital 12-bit base CameraLink® output
- Automatic Gain Control (AGC)
- Windowing, Binning and In-Field Offset Corrections
- Operation from -40 to +70°C
- Tested to MIL-STD-810G for functional shock, vibration, thermal shock, storage temperature, altitude and humidity
- Mechanical
-
Dimensions
ENC Series: 2.0 x 2.0 x 2.43 in, 50.8 x 50.8 x 61.7 mm
OEM Series: 1.65x1.60x1.60 in, 41.9 x 40.6 x 40.6 mm -
Weight
≤ 235 g enclosed, ≤ 120 g OEM
-
Lens Mount
M42x1 mount
-
Camera Link Connector
3M SDR26 Connector enclosed
-
Pixel Pitch
12.5 μm
-
Focal Plane Array
1280 x 1024 pixels
-
Active Area
16.0 mm x 12.8 mm x 20.5 mm diagonal
- Environmental & Power
-
Operating Case Temperature
-40˚C to 70˚C
-
Storage Temperature
-54°C to 85°C
-
Humidity
95% relative humidity
-
Power Requirements
DC Voltage: 8-16V
Power: ≤ 3.0 W at 20°C case temperature, max ≤ 10.0 W -
Functional Shock, Random Vibration, Thermal Shock, Temperature/Altitude/Humidity Combined, Acceleration
MIL-STD-810G compliant
- Electrical
-
Optical Fill Factor
100%
-
Spectral Response
Standard, 0.9 µm to 1.7 µm, VIS/SWIR, 0.5 µm to 1.7 µm (optional)
-
Quantum Efficiency
Standard, ≤ 65 % from 1 µm to 1.6 µm, VIS/SWIR, ≤ 65% from 0.7 µm to 1.6 µm (optional)
-
Mean Detectivity, D*
2.9 x 1013 cm√Hz/W (typical)
-
Noise Equivalent Irradiance*
8.5 x 108 photons/cm2×s (typical)
-
Noise (RMS)*
35 electrons (typical)
-
Dynamic Range**
1700:1
-
Operability
≤ 99%
-
Exposure Times***
30 µs to 33 ms
-
Image Correction
2-point (offset and gain) pixel by pixel, user selectable
-
Digital Output Format
12 bit base Camera Link®
-
Analog Output Format
N/A
-
Digital Output Frame Rate
30 fps
-
Scan Mode
Continuous or 3 externally triggered modes
-
* λ = 1.55 µm, exposure time = 33 ms, 17°C TEC setpoint, high gain, no lens, x1 digital gain with enhancement, AGC and correction off.
** In high dynamic range OPR settings, 17°C. Able to achieve 750:1 in highest sensitivity OPR setting.
*** Standard configuration Exposure time = 200 µs in lowest sensitivity OPR setting.
Military Applications
- Low-light level imaging
- Covert surveillance with passive 24 hr/7 day operation
- Multi-laser spotting and tracking
- Imaging through atmospheric obscurants
- OEM version for easy integration into UASs, handheld, or robotic systems
- Driver Vision Enhancement (DVE)
Commercial Applications
- Enhanced Vision Systems (EVS)
- Silicon wafer or integrated circuit microscopy
Important export information
The International Traffic in Arms Regulations (ITAR) details the regulations governing the export of defense related materials and technologies. The U.S. Munitions List (USML) categorizes goods and technologies governed by the ITAR. This product is available for sale outside the United States to approved end users subject to receipt of an approved export license. Export of this product from the United States is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
Violations of the ITAR are extremely serious and can result in fines, debarment, and criminal sanctions. Please direct any questions or concerns regarding the export status of your Sensors Unlimited product to your Account Manager or email us at sui_info@collins.com.
Mini SWIR GA1280JSX Camera - 30 fps | ||
---|---|---|
Export Classification: | ITAR XII(e)(4) | HTS - 9027.50.4060 |
RTX does not assume any liability that should arise from the provision of this information in connection with national customs laws and regulations or other international trade requirements.
