Image Fusion With Long Wave Infrared (LWIR) And Short Wave Infrared (SWIR) or Hinted SWIR™

In a concept called Hinted SWIR™, Sensors Unlimited is developing the means to maximize target detection and recognition through a combination of long wave infrared and short wave infrared sensors.

Shown here is a simple prototype employing a DRS uncooled microbolomoter for LWIR sensing packaged alongside a Sensors Unlimited SWIR camera. Both cameras have approximately the same field of view to simplify the fusion of the two images. For this prototype, Sensors Unlimited employs a fusion engine made by Equinox.

LWIR is excellent for detecting thermal signatures of people and vehicles as a result of the temperature difference between them and the background environment. This type of sensor sees thermal emissions and is in wide use around the military for thermal weapon sights as the LWIR image component shows it does a very good job in detection of thermal targets.

SWIR, on the other hand, sees in reflected light, and because of its shorter wavelengths is also able to give higher resolution and more details to images. Thus, an effective combination of these two wavelengths would allow very good detection along with positive target recognition.

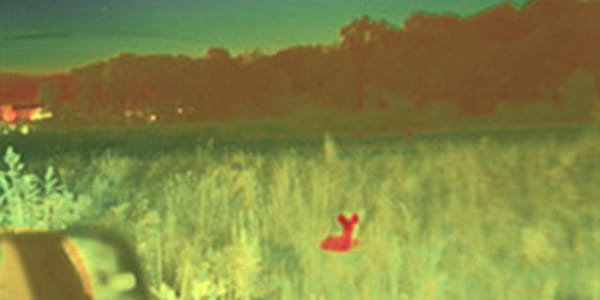

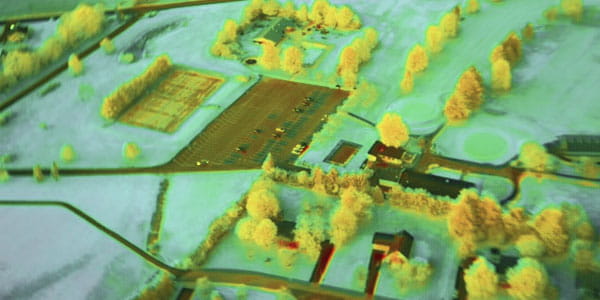

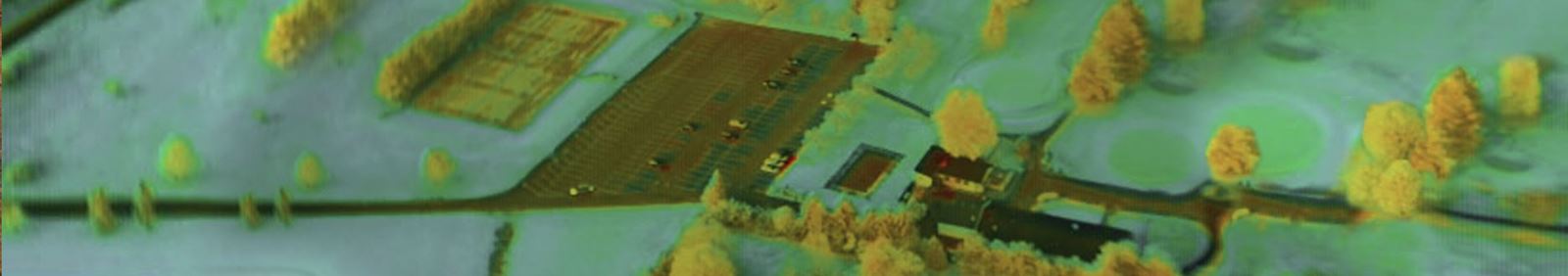

In a technique called Hinted SWIR™, Sensors Unlimited uses LWIR detection to “hint” the SWIR image to highlight the areas where the user might want to focus in order to detect and identify targets. As shown here, the “thermal hints” use false colors to give relative temperature values behind the SWIR images.

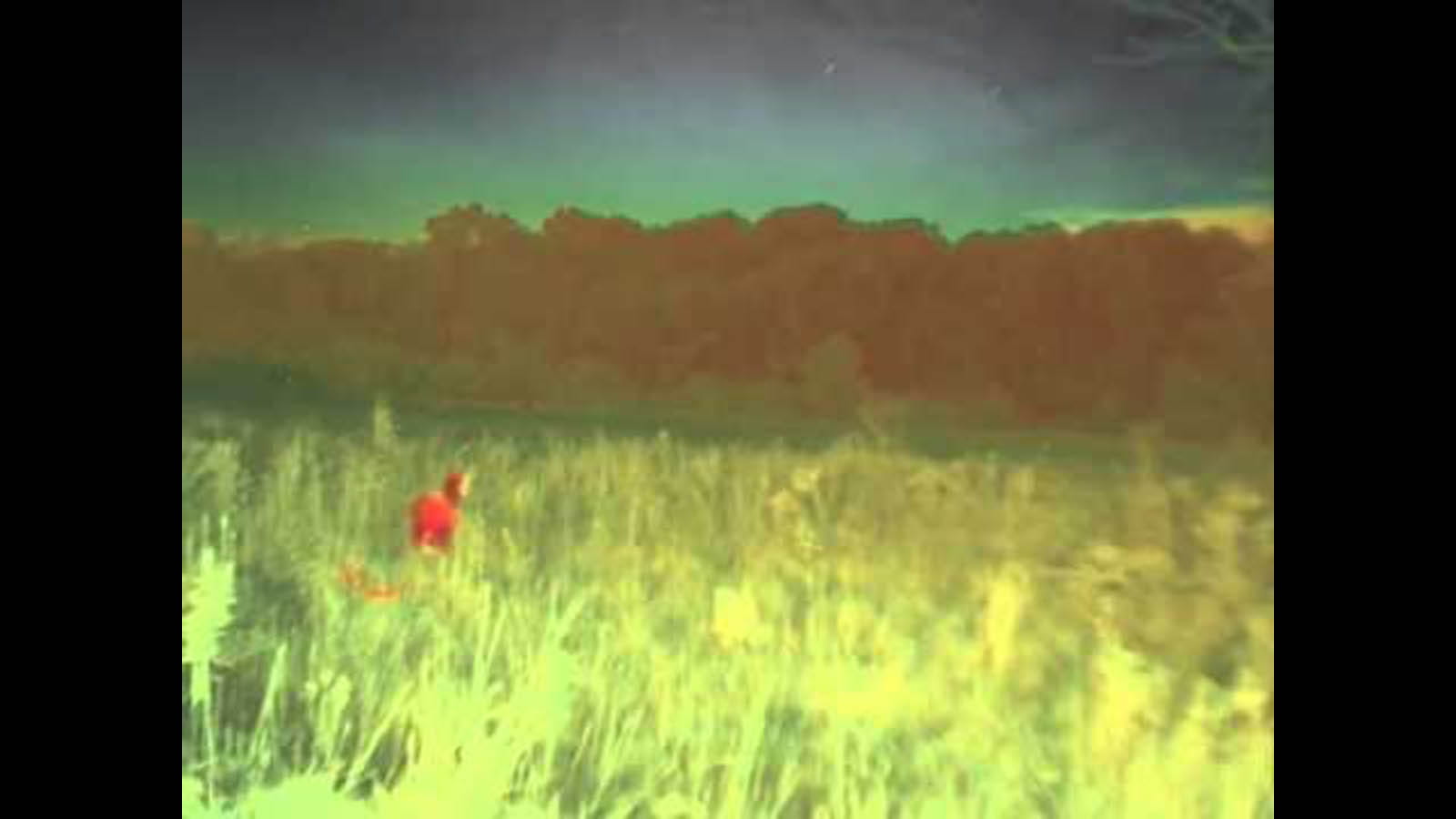

Below is a video of thermally-hinted NIR/SWIR night images of deer.


In an operational system, we envision the thermal hints could be turned off once the target location has been cued in the image, then the user would use primarily SWIR-only for target identification and action.

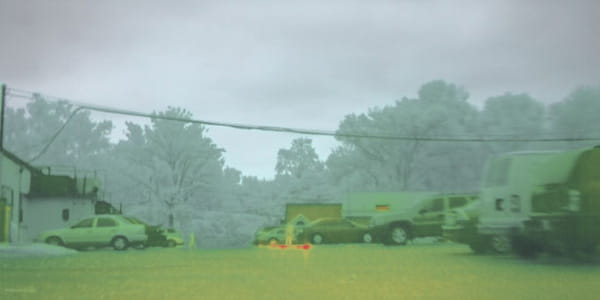

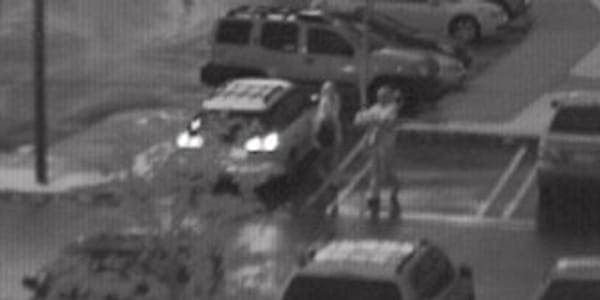

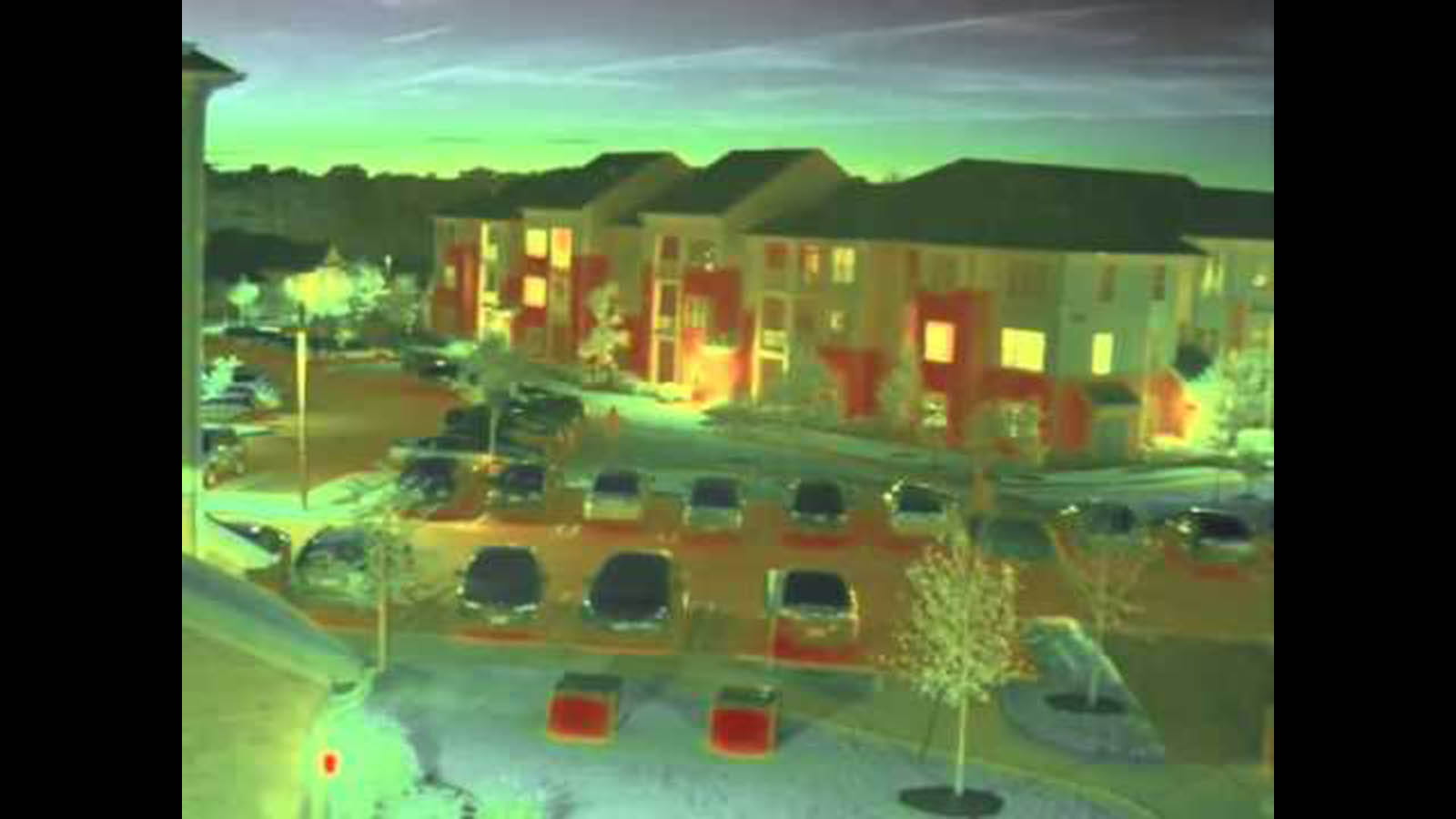

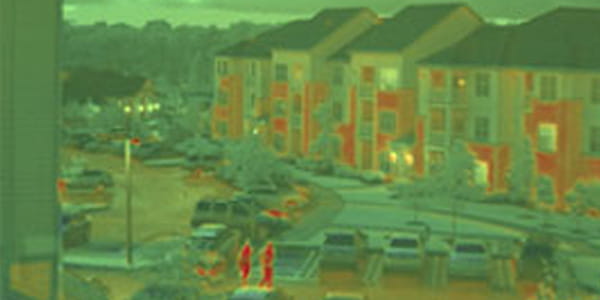

Below is a video of thermally-hinted NIR/SWIR evening images:  6:45pm October 3, 2009, a wet evening in the Princeton, NJ area (65°F) after heavy rain. Two people crossing a parking lot at 100m range stand out clearly in the thermally-hinted image. NIR/SWIR provides detailed scene contextual clues. The thermal hints cut through the clutter to highlight human and vehicle activity.


To learn more about Hinted SWIR™, please read our article titled "Sensor Fusion Payloads - The Key to Information Rich Imaging" that ran in the December 2009 issue of Unmanned Systems Magazine.
